Every year concrete technology evolves. Now the spray tank is finally evolving with it.


Concrete Construction Live

World Of Concrete 2017: MIP Winner

At our World of Concrete 2017 debut, Green Gorilla landed one of the coveted Most Innovative Products awards. In the "Concrete Surfaces & Decorative" category, we were awarded Expert’s Choice for our Csf system.

Our patented Smart Pressure Technology was picked for it's ability to deliver smooth, precise application of spray materials all day long with zero pumping.

Without the need to pump, professionals can apply stains, sealants, and more quickly and efficiently, while giving them digitally precise coverage.

This year we're introducing our Automatic WaterFeed System. Now cutting and coring jobs don't have to be a two man job, when a water source is not readily available. Our automated system will deliver steady water, hands free, at the touch of a button.

Two Systems To Meet Your Needs

Green Gorilla has developed two unique systems to improve and streamline your job site.

Pressure Sprayer Green Gorilla ProLine

A Two Man Job Becomes A One Man Job

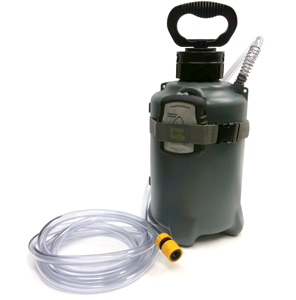

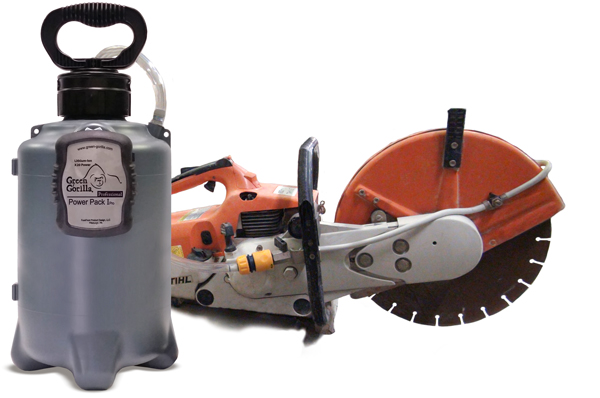

BigFoot Aws: Automatic WaterFeed System Steady water delivery to your cutting tools without someone manually pumping. Just attach the system as you would a traditional water delivery tank and flip the switch. The system will pump water smoothly, automatically, with no need for further handling.

Instead of having two workers on a cutting job, complete the task with a single worker, freeing you to assign the other crew member to other tasks.

Pressure Sprayer Green Gorilla ProLine

Consistency All Day Long

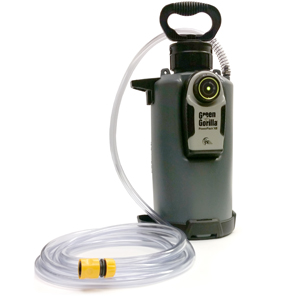

ProLine Csf & Cae: Self-Pressurizing Tank Sprayer Excellent for spraying stains, seals, and more with precision and speed. With the push of a button, this automated tank maintains pressure precisely, ensuring that spray materials are applied accurately every time, all day long.

Additionally, without the need to stop and pump, spray times can be reduced by up to 25%. With time sensitive applications, this will provide you the extra time to do the job right, quickly and easily.

Pressure Sprayer Green Gorilla Fluid Delivery System
  Automatic WaterFeed System
Seal & Gasket Material EPDM
Operating Pressure 16 psi
Automatically Maintains Pressure Yes
PowerPack Interface One Touch
Easy-Twist Quick-Connect Pressure Sprayer Green Gorilla ProLine Comparison Overlay Vi
User Replaceable Power Cells No
Sizes 1.5 gal & 2.5 gal
Hose Connection Pressure Sprayer Green Gorilla ProLine Wands Vi
Backup Manual Pump Yes

Pressure Sprayer Green Gorilla ProLine Comparison Vi Series
  Cae Series
(Acetone Stains)
Csf Series
(Sealers & Form Oils)
Seal & Gasket Material EPDM & Buna-N Viton®
Operating Pressure 20 psi
Automatically Detects & Maintains Pressure Yes
PowerPack Interface Pressure Sprayer Green Gorilla ProLine Comparison Overlay Vi
Tank Connect / Disconnect Pressure Sprayer Green Gorilla ProLine Comparison Overlay Vi
User Replaceable Power Cells 2
Sizes 1.5 gal & 2.5 gal
Available Wands Pressure Sprayer Green Gorilla ProLine Wands Cae Pressure Sprayer Green Gorilla ProLine Wands Csf
Stress Relief Hose Springs Yes
Backup Manual Pump Yes
Proline Sprayer Tank

Tank Construction:

Material: Specially formulated high strength chemical and impact resistant material

Fabrication: Proprietary custom blow molded technology

Strength: Thick walled - high burst pressure >60 psi

Chemical Resistance: Highly resistant to a wide range of chemicals

Endurance Test: Six foot drop test onto concrete (no affect) - more durable than metal

Sealing Surface: Specially designed post-machined sealing surface for O-ring seal

Capacity: 1.5 and 2.5 gal. (Easy-Fill extra wide mouth)


Connection Technology

Material: Acetal - high strength and chemical resistant

Seals: Available in Viton® or EPDM

Type: Patented "Quick-Connect™" system

Connection Products: PPX push-on/twist knob removal

Manual Depressurization: Yes - depress red button to depressurize tank

Safety Auto-Depressurization: Yes - automatic safety pressure release

Max Pressure: >50 psi


Hose

Material: Flexible reinforced PVC double wall and highly resistant to a wide range of chemicals

Size/Color: 0.54" (OD) x 0.31" (ID) x 48" (long) / Dark Grey

Strain Relief: Stainless springs available

End Connection: Brass compression sleeve onto 1/4" Male NPT


Manual Pump

Material: Chemical resistant Co-Polymer

Capacity: High capacity pump requires fewer strokes for higher pressure

Seals: Available in Viton® or EPDM


Proline Sprayer PowerPack

PowerPack Housing:

Material: Space-age high strength Xenoy™ - Six foot drop test onto concrete (pass)

Color: Black over-mold with grey case

Over-mold: Santoprene™ - 50 durometer

Connection to Tank: Push-in to attach, twist knob to remove: Quick-Connect™


Micro Compressor

Type: Reciprocating Piston - high cycle life tested

Motor: Brush DC

Max Flow: 6.0 L/min

Max Pressure: 29 psi (200 Kpa)


Smart Pressure Technology™

Controller Type: Advanced microprocessor coupled with solid state high accuracy piezoresistive MEMS pressure sensor technology

User Adjustable: No

Factory Setting: 20/18 psi +- 5%

Hysteresis: 2 psi (factory adjustable)


Battery Technology

Type: Dual field replaceable rechargeable Li-Ion - 5200 mA-hr. @ 7.4Vdc

Recharge Time: ~5 hrs with 115 VAC wall charger

Recharge Method: Wall charger rated at 8.4 VDC, 1000 ma or 12 Vdc car charger

Charging Indicator: LED: Red = charging, Green = charged

Capacity Indicator: LED: Green = charged, Yellow = half charge, Red = discharged

Application Time: 6 - 8 hrs

Proline Sprayer Tank

Tank Construction:

Material: Specially formulated high strength chemical and impact resistant material

Fabrication: Proprietary custom blow molded technology

Strength: Thick walled - high burst pressure >60 psi

Chemical Resistance: Highly resistant to a wide range of chemicals

Endurance Test: Six foot drop test onto concrete (no affect) - more durable than metal

Sealing Surface: Specially designed post-machined sealing surface for O-ring seal

Capacity: 1.5 and 2.5 gal. (Easy-Fill extra wide mouth)


Connection Technology

Material: Acetal - high strength and chemical resistant

Seals: EPDM

Type: Patented "Quick-Connect™" system

Connection Products: Twist removal via Jgroove

Manual Depressurization: Yes - depress red button to depressurize tank

Safety Auto-Depressurization: Yes - automatic safety pressure release

Max Pressure: >50 psi


Hose

Material: Clear, flexible, and designed for good kink resistance

Size/Color: 0.68" (OD) x 0.43" (ID) x 15 ft. (long) / Clear

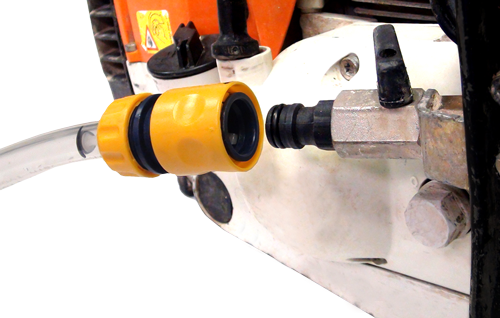

End Connection: Industry standard straight quick connect w/shutoff


Manual Pump

Material: Chemical resistant Co-Polymer

Capacity: High capacity pump requires fewer strokes for higher pressure

Seals: EPDM


Proline Sprayer PowerPack

PowerPack Housing:

Material: High strength PC/ABS

Color: Gray

Over-mold: Chemical resistant EPDM

Connection to Tank: Easy-Twist Quick-Connect™

Seal: Rubber over-mold - IP-54 Dust/Splash Proof


Micro Compressor

Type: Reciprocating Piston - high cycle life tested

Motor: Brush DC

Max Flow: 4.0 L/min

Max Pressure: 21 psi (150 Kpa)


Battery Technology

Type: Rechargeable Li-Ion - 2600 mA-hr.

Recharge Time: ~4 hrs with 115 VAC wall charger

Recharge Method: Wall charger rated at 8.4 VDC, 500 ma or 12 Vdc car charger

Charging Indicator: LED, Red: Charging / Green: Charged

Run Time: 2 - 3 hrs continuous

Proline SPT Logo

SPT

Engineered Precision

By automating the pressurization of our systems, we ensure that users apply the correct amount of product every time.

Users are also freed from pumping, allowing them to complete jobs faster and with less fatigue.

  • Precise Application
  • Faster Job Completion
  • Increased Profits
  • Built To Last
Learn More About SPT
