hazmat sprayers

ProLine & BigFoot Series

Decon Systems

Digitally Controlled Pressure To Ensure Precise Application
While Reducing User Fatigue And Minimizing Disruption To Protective Gear

Ramping Up to Combat COVID-19

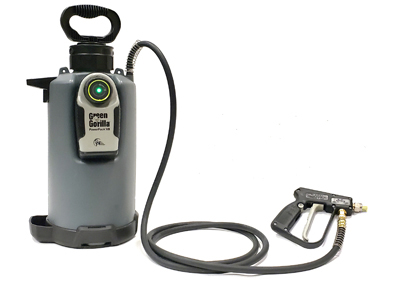

Self pressurizing sprayers allow you to leave the tank in one location for greater agility and less fatigue in treating under surfaces, seats, desks and beds.

Systems can be equipped with a 10, 15 or 20 foot hose allowing for greater mobility in confined areas. All systems are industrial grade and come standard with seals that withstand bleach solutions, alcohol solutions and most industrial disinfectants and virucides.


Buyers within Pennsylvania, USA: Contact the distributors below for ordering.

Liberty Distributors   Colker Janitorial Supplies

Buyers outside of Pennsylvania, USA: Please follow the link below for ordering.

Out Of State Ordering

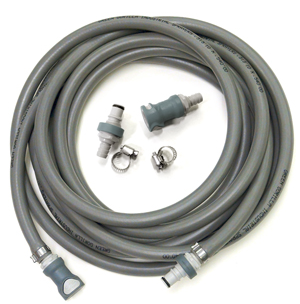

With a 10 or 15 ft hose extension only carry the wand and leave the tank in one location for easy application in confined areas


Looking for Replacement Parts?

Shop Here!

Pressure Sprayer Green Gorilla ProLine Comparison Proline Series
Pressure Sprayer Green Gorilla ProLine Comparison BigFoot Series
  ProLine Series BigFoot Series
Seal & Gasket Material Viton® & EPDM
Flow Rate / Avg. Droplet Size 0.029 GPM / 100 Microns 0.14 GPM / 150 Microns
Automatic Pressure Detection & Maintennce Yes
Pressure Detection Mechanism All Digital Pressure Switch Physical Pressure Switch
PowerPack Interface Pressure Sprayer Green Gorilla ProLine Comparison Overlay Vi
Tank Connect / Disconnect Pressure Sprayer Green Gorilla ProLine Comparison Overlay Vi BigFoot Connector Graphic
Power Cell Replacement User Replaceable Factory Replaceable
Spray Handle
Sizes 2.5 gal
Hose Length 10ft
(Other Lengths Available)
Stress Relief Hose Springs Yes
Backup Manual Pump Yes
Proline Sprayer Tank

Tank Construction:

Material: Specially formulated high strength chemical and impact resistant material

Fabrication: Proprietary custom blow molded technology

Strength: Thick walled - high burst pressure >60 psi

Chemical Resistance: Highly resistant to a wide range of chemicals

Endurance Test: Six foot drop test onto concrete (no affect) - more durable than metal

Sealing Surface: Specially designed post-machined sealing surface for O-ring seal

Capacity: 1.5 and 2.5 gal. (Easy-Fill extra wide mouth)


Connection Technology

Material: Acetal - high strength and chemical resistant

Seals: Available in Viton® or EPDM

Type: Patented "Quick-Connect™" system

Connection Products: PPX push-on/twist knob removal

Manual Depressurization: Yes - depress red button to depressurize tank

Safety Auto-Depressurization: Yes - automatic safety pressure release

Max Pressure: >50 psi


Hose

Material: Flexible reinforced PVC double wall and highly resistant to a wide range of chemicals

Size/Color: 0.54" (OD) x 0.31" (ID) x 48" (long) / Dark Grey

Strain Relief: Stainless springs available

End Connection: Brass compression sleeve onto 1/4" Male NPT


Manual Pump

Material: Chemical resistant Co-Polymer

Capacity: High capacity pump requires fewer strokes for higher pressure

Seals: Available in Viton® or EPDM


Proline Sprayer PowerPack

PowerPack Housing:

Material: Space-age high strength Xenoy™ - Six foot drop test onto concrete (pass)

Color: Black over-mold with grey case

Over-mold: Santoprene™ - 50 durometer

Connection to Tank: Push-in to attach, twist knob to remove: Quick-Connect™


Micro Compressor

Type: Reciprocating Piston - high cycle life tested

Motor: Brush DC

Max Flow: 6.0 L/min

Max Pressure: 29 psi (200 Kpa)


Smart Pressure Technology™

Controller Type: Advanced microprocessor coupled with solid state high accuracy piezoresistive MEMS pressure sensor technology

User Adjustable: No

Factory Setting: 20/18 psi +- 5%

Hysteresis: 2 psi (factory adjustable)


Battery Technology

Type: Dual field replaceable rechargeable Li-Ion - 5200 mA-hr. @ 7.4Vdc

Recharge Time: ~5 hrs with 115 VAC wall charger

Recharge Method: Wall charger rated at 8.4 VDC, 1000 ma or 12 Vdc car charger

Charging Indicator: LED: Red = charging, Green = charged

Capacity Indicator: LED: Green = charged, Yellow = half charge, Red = discharged

Application Time: 6 - 8 hrs

Proline Sprayer Tank

Tank Construction:

Material: Specially formulated high strength chemical and impact resistant material

Fabrication: Proprietary custom blow molded technology

Strength: Thick walled - high burst pressure >60 psi

Chemical Resistance: Highly resistant to a wide range of chemicals

Endurance Test: Six foot drop test onto concrete (no affect) - more durable than metal

Sealing Surface: Specially designed post-machined sealing surface for O-ring seal

Capacity: 1.5 and 2.5 gal. (Easy-Fill extra wide mouth)


Connection Technology

Material: Acetal - high strength and chemical resistant

Seals: Viton® or EPDM

Type: Patented "Quick-Connect™" system

Connection Products: Twist removal via Jgroove

Manual Depressurization: Yes - depress red button to depressurize tank

Safety Auto-Depressurization: Yes - automatic safety pressure release

Max Pressure: >50 psi


Hose

Material: Clear, flexible, and designed for good kink resistance

Size/Color: 0.68" (OD) x 0.43" (ID) x 10 ft. (long) / Gray

Wand: Several Options


Manual Pump

Material: Chemical resistant Co-Polymer

Capacity: High capacity pump requires fewer strokes for higher pressure

Seals: Viton® or EPDM


Proline Sprayer PowerPack

PowerPack Housing:

Material: High strength PC/ABS

Color: Gray

Over-mold: Chemical resistant EPDM

Connection to Tank: Easy-Twist Quick-Connect™

Seal: Rubber over-mold - IP-54 Dust/Splash Proof


Micro Compressor

Type: Reciprocating Piston - high cycle life tested

Motor: Brush DC

Max Flow: 4.0 L/min

Max Pressure: 21 psi (150 Kpa)

Pressure Control: Factory adjustable pressure switch automatically controls pressure


Battery Technology

Type: Rechargeable Li-Ion - 2600 mA-hr.

Recharge Time: ~4 hrs with 115 VAC wall charger

Recharge Method: Wall charger rated at 8.4 VDC, 500 ma or 12 Vdc car charger

Charging Indicator: LED, Red: Charging / Green: Charged

Run Time: 4 - 6 hrs continuous

Proline SPT Logo

SPT

Engineered Precision

By automating the pressurization of our systems, we ensure that users apply the correct amount of product every time.

Users are also freed from pumping, allowing them to complete jobs faster and with less fatigue.

  • Precise Application
  • Faster Job Completion
  • Increased Profits
  • Built To Last
